Printing requires an installation of the UWP application on a Windows 10 computer on at least one Windows 10 computer at each store location.

The UWP application connects the hardware , Printers, Conveyors etc. (cut and paste this link into your browser https://www.pos.mydrycleaning.com.au/updates )

Ticket Printers

The Ticket printers are Epson TM88V usb printer. You cannot have printers in the same store with the same name. It is recommended to have Epson TM88V on PC1 and Epson TM88V on PC2
CITIZEN CT-S851II Ticket Printers also work with MCP (cts851ii_lm_v3610E Driver) However must be forced to the EPSON TM-T88V ReceiptE4 Drivers

Tag/Label Printers

The Tag/Labels printer are a Bixolon SRP-275III dot matrix printer – There is a modification required in the printer driver – Printing preferences – Document setting – Send Commands – End Page <1b>i and the printer name must have Bixolon in the name.(Bixolon SRPIII you require the 1.0.7 driver. Bixolon SRPII you require the 1.2.0 driver).

You cannot have printers with the same name in the same store. It is recommended that each printer be named as Bixolon on PC1 or Bixolon on PC2

Metalprogetti option should be left ON

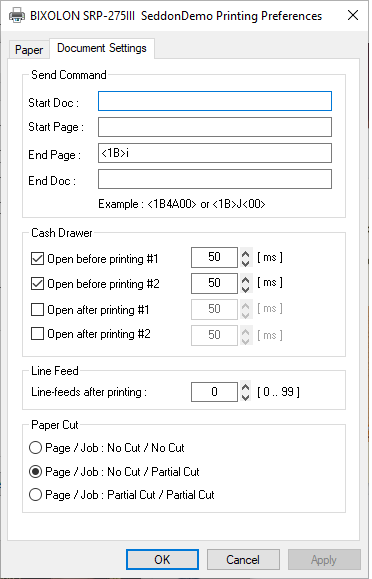

Bixolon SRP 275III Settings

IMPORTANT: Make sure you have driver version 1.07 for the Bixolon SRP-275III.
1 – Go to Settings → Printers & Scanners → Bixolon SRP-275III → Manage → Printing Preferences
2 – Set the following:
(Defaults for all settings apart from “End Page” which is set to “<1b>i” without quotation marks)
