Products

____________________________________________________________________

This is where you can setup your garment type . eg. Pants, Jackets, 2pc Suit, 3 piece Special, 7 shirt special

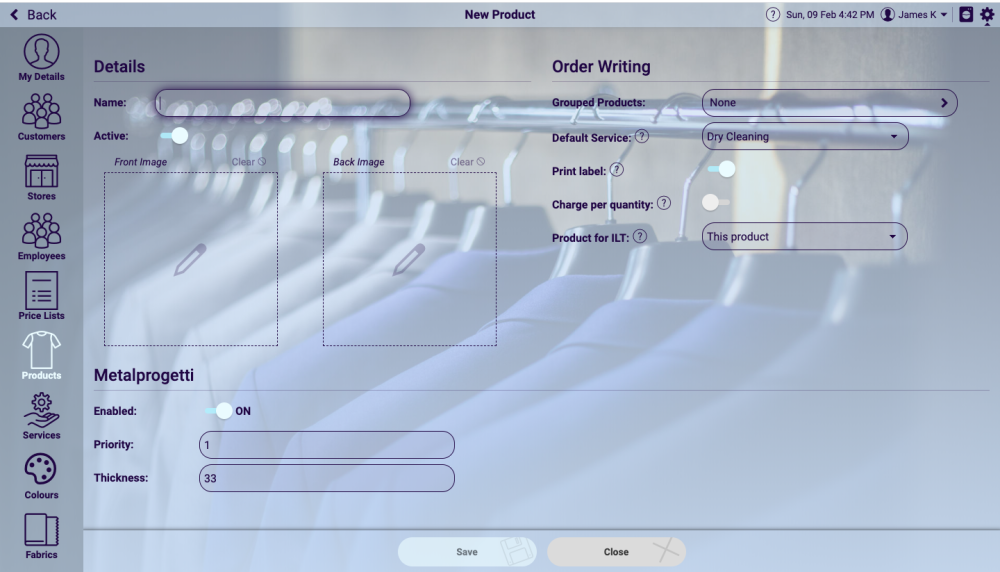

You add a new garment type or update an existing garment type as shown in the following screen. All garment details and images (if required) are recorded, order writing rules are confirmed, and, enablement of Metalprogetti functionality can be selected

If the garment is to be tracked using Item Level Tracking the ILT button is checked. For Example:
A 3 Piece special would have an ILT of Any.
A 7 Shirt Special would have an ITL of Shirt (7)
A 2pc Suit would have an ITL of Pants and Jacket – This means when you press 2pc suit – it will select for you Pants and Jacket

Priority – this will determine which items will come off the conveyor first
eg. Trousers then Jackets then shirts
Thickness determines how thick a garment can be . 33 means that 3 items can fit on one slot for the storage conveyor. 100 means that 1 item will fit on a single slot on the storage conveyor.
we can also set the assembly system to use this information also and it can use it when doing automatic order splitting. eg. in Metalprogetti Mag we can set the number of pieces to split to be 4. We can also set the accumulated width to split to be 200. This means that if the garment width is 33 we can fit 6 garments on an order but if the number of pieces is set to 4 it will split the order automatically at 4 pieces. If the piece is set as a thickness of 100 – then when you book in 4 x heavy jackets (total thickness 400) If the Mag is set at a max thickness of 200 then once you load 2 heavy jackets it will automatically split and then next 2 jackets will go on a new sub order.
To do this we need to modify 2 fields in Map – change on MAG.dbf file the value CAPICAS and DIMCAS. Using Foxpro – use Map – brow – select mag CAPICAS 4, DIMCAS 200 – click on X exit. Run Automatic
Heavy jacket should be thickness 100 to fit 2 heavy jackets in 1 bag
