How to connect your conveyor

To setup your conveyor to connect to your MyCleanPOS Terminal let us again go to ABC Dry Cleaners.

Go to settings on the top right hand of the screenshot below.

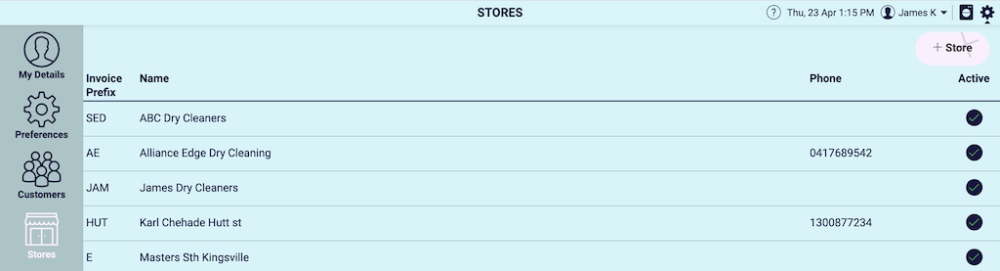

Select your Store from the list below where you wish to enable a conveyer. Again we will select ABC Dry Cleaners.

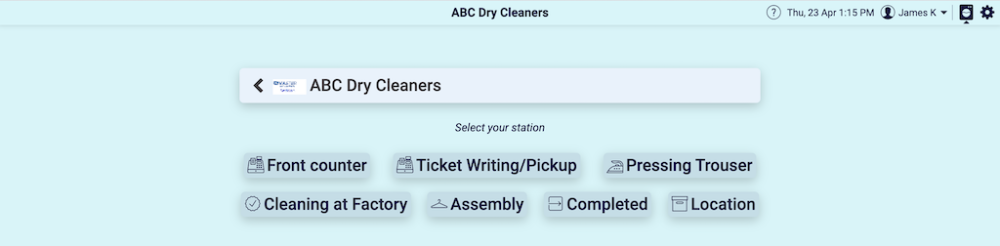

Having selected the ACB Dry Cleaners store, the Store screen will e launched.

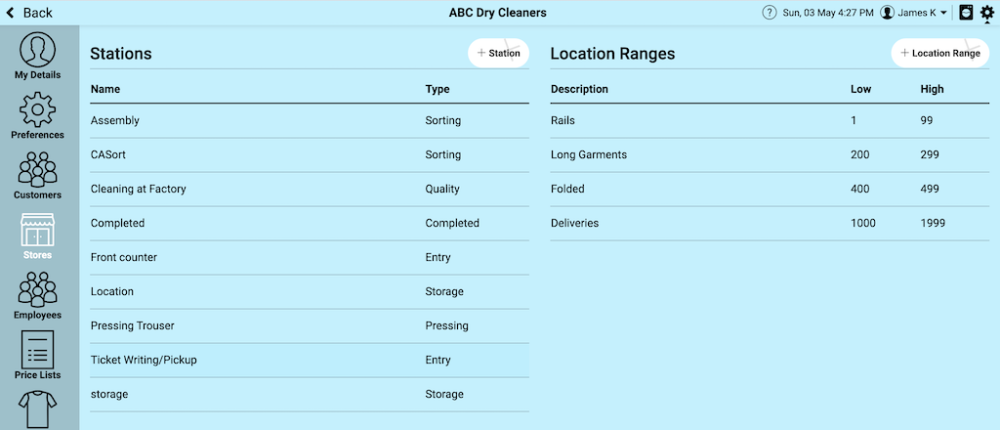

Scroll down and in the lower half of the Store Screen you will see Stations. This is where you will enable your conveyer to the MyCleanPOS terminal.

In addition to Stations, you will also see Location Ranges to the right of Stations. Locations are where you will nominate location ranges where specific garment types will be sent to nominated positions on the conveyor for assembly, bagging, and, delivery.

In the example below the Assembly Station is where you can enable your conveyor system, whether a CASort, Metalprogetti, or, other Conveyor system.

You can create additional Stations, with different Conveyor Systems a for single store or multiple stores and decide what type of station you want to add.

You have several choices of conveyor connections in the following examples:
Station 1. Storage (Spins the conveyor to the Storage slot)
Station 2. Assembly Basic (CASort which spins the conveyor to the CASort slot)
Station 3. Assembly Advanced (Metalprogetti MAP – Assembles the order, extracts and bags the order)

Let’s work through these examples and set up some stations with different conveyor systems.

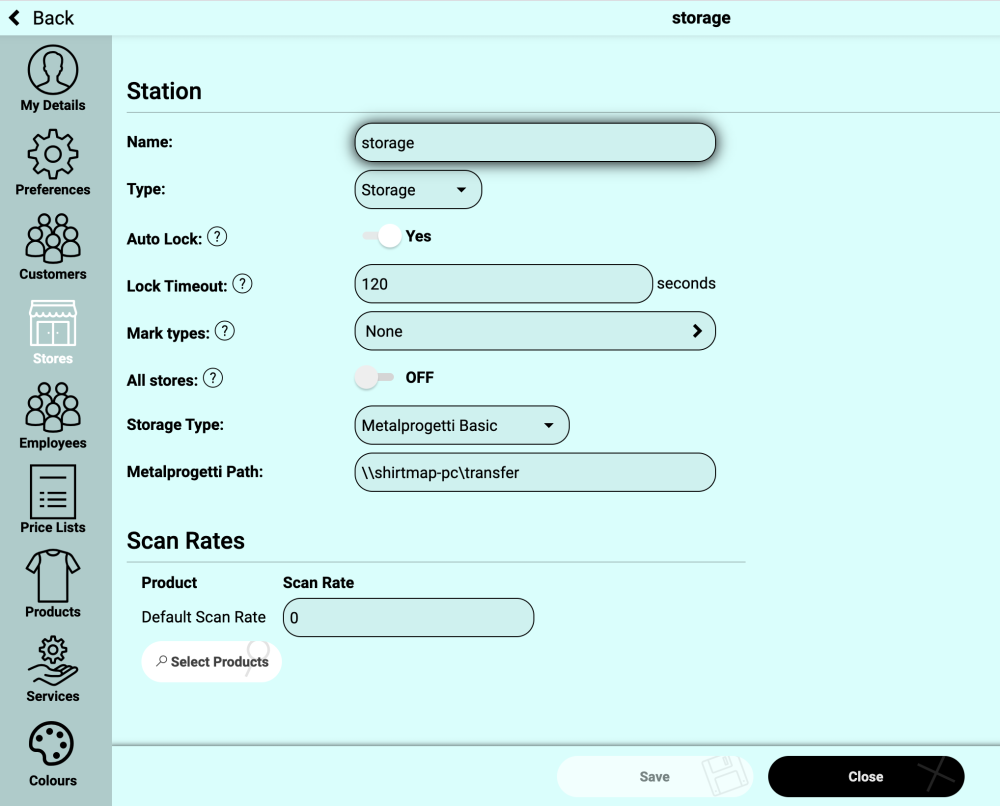

Shown below Station 1. Spins the Metalprogetti conveyor to the slot at Pickup
Station
Name:Storage
Type: Storage
Mark Types:None
All Stores:OFF
Storage Type: Metalprogetti Basic
Metalprogetti Path: \\shirtmap-pc1\Transfer

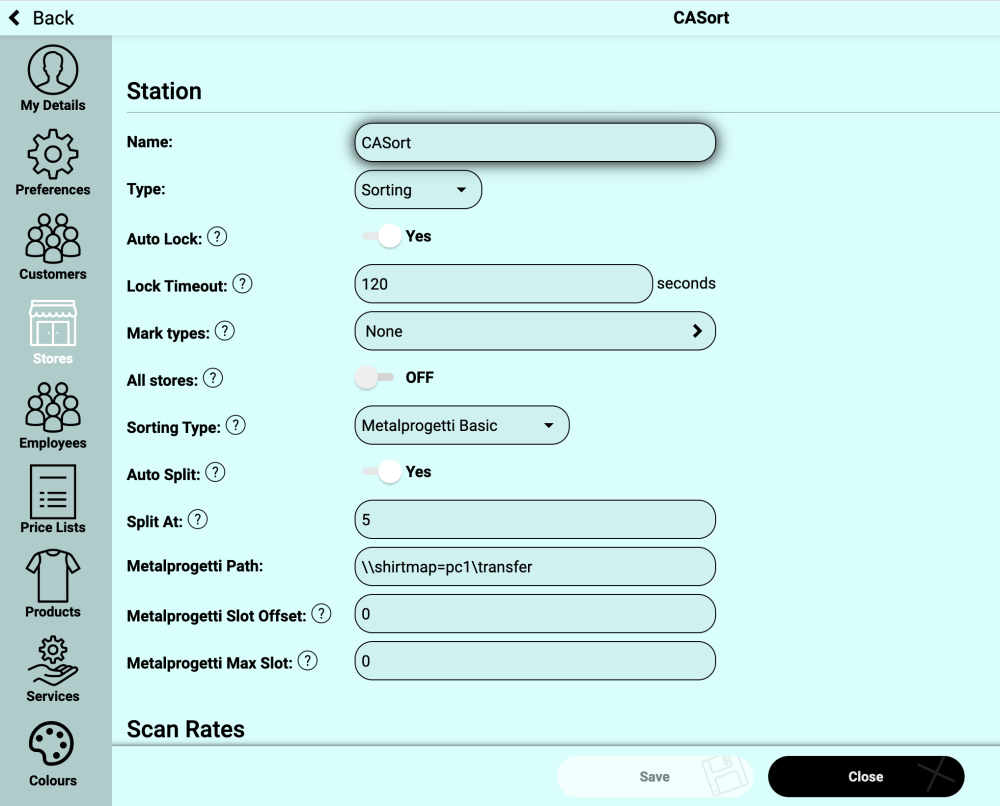

Shown below Station 2. – with CASort with Automatic splitting at 5 pieces – spins conveyor to slot
Station
Name:CASort
Type: Sorting
Mark Types:None
All Stores:OFF
Storage Type: Metalprogetti Basic
Metalprogetti Path: \\shirtmap-pc1\Transfer
AutoSplit ON
Pieces 5

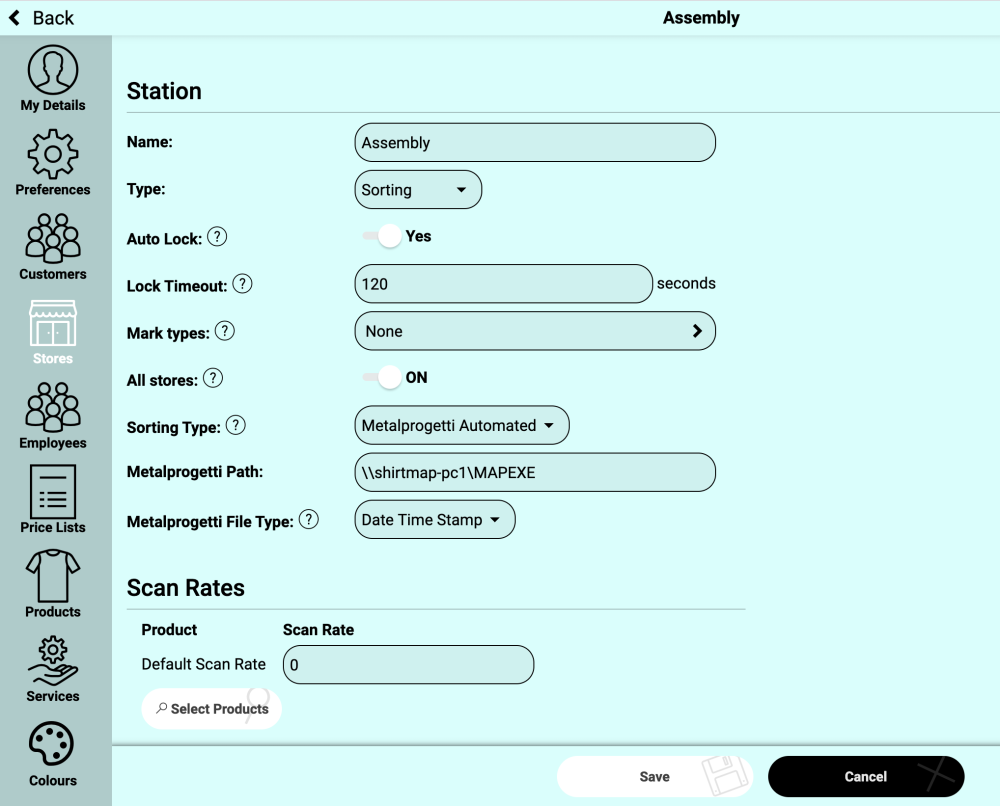

Shown below Station 3. – Metalprogetti conveyor assembles and bags the order
Name:Assembly
Type: Sorting
Mark Types:None
All Stores:ON
Sorting Type: Metalprogetti Automated
Metalprogetti Path: \\shirtmap-pc1\MAPEXC
Metalprogetti File Type : Date time stamp
