Setup Godex RT700x

Godex RT700x Garment tag printer settings

Drivers used have been provided by Godex
https://www.godexintl.com/downloads?locale=en_US

Godex RT700x Garment tag printer settings

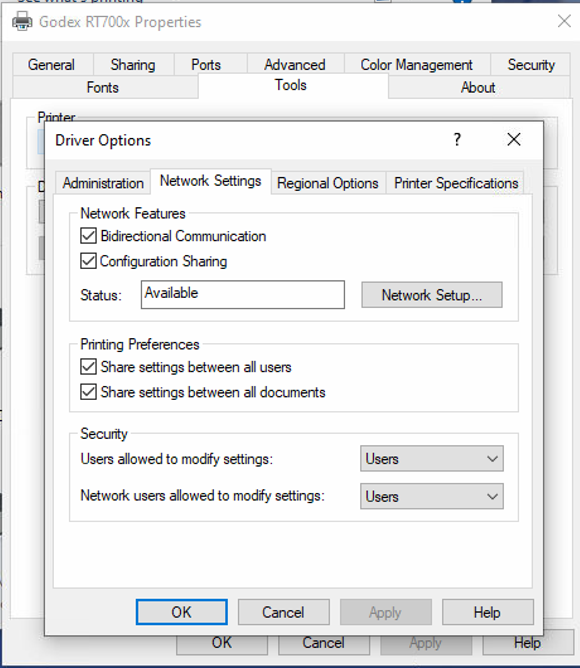

Set the printers options to be shared amongst users and documents

Override the Manufacturer settings.
Set width to 100mm
top and bottom margin are 2mm

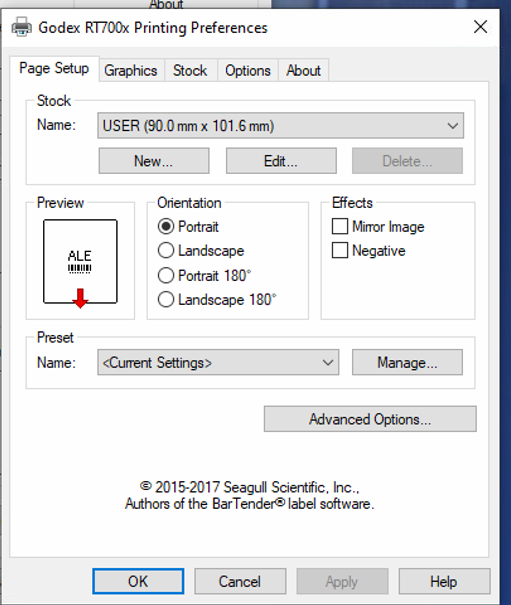

Printing preferences:

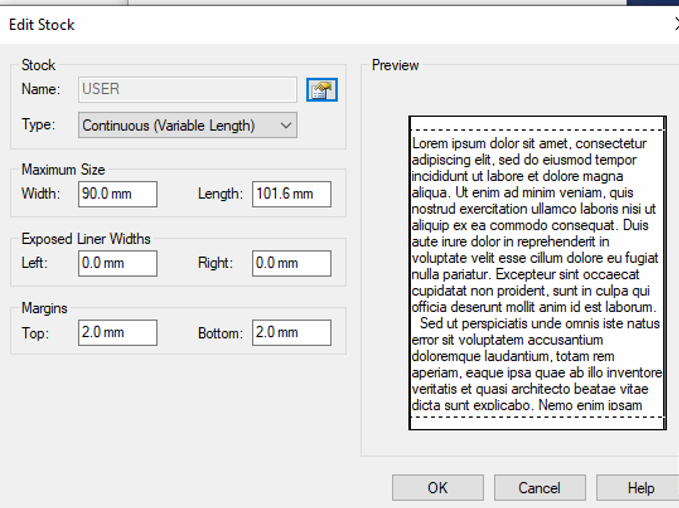

Setup page sizing (variable length continuous 90mmx24mm with 3mm top and bottom margins)

stock is 90mm x 100mm (90mm helps prevent left side cut-off)
top//bottom margin is 2mm

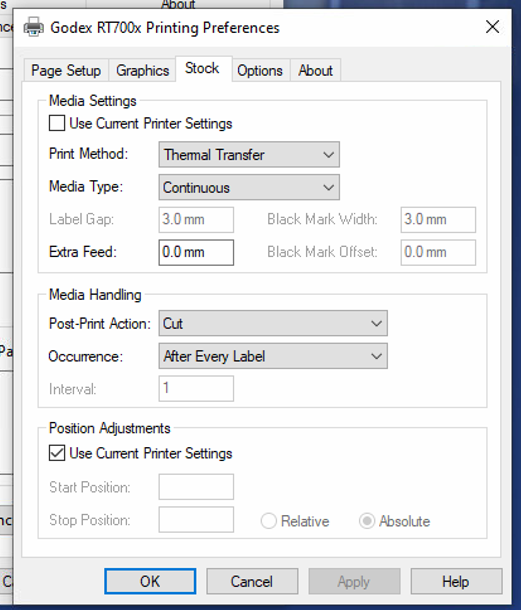

Stock settings:
Set to cut after every page
Turn off Position adjustment.
Turn on Position adjustment.

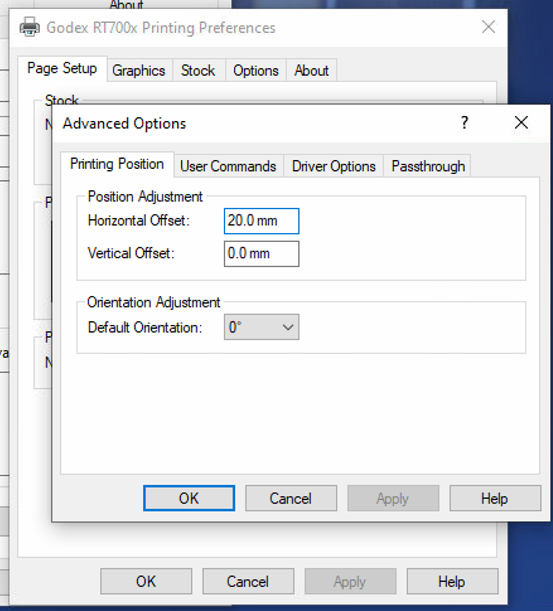

Set printing position in Prniting preference -> advanced settings

Print a test page – this will ensure the settings set in the windows driver get sent to the printer.
Tell the printer to calibrate in Tools -> Action -> Do Calibration
